Available lengths 2.75 m, 3 m and 4 m. With threads on each of its ends which allows to take advantage of the entire length without discarding cuts.
Thermal Lances
- It works at a pressure of 100 to 120 PSI of oxygen.
These lances have 2.5 mm diameter wires embedded longitudinally in the pipe. The lay out of these wires can be of the following type T o Wwith standard length of 3 m and coupling at one end.
Advantages:
- Fast Ignition in average 5-10 seconds.
- Ability to melt any ferrous and non-ferrous material (steel, concrete, concrete, granite, copper, slag, quartz, etc.) complementing oxyfuel, pneumatic drills and explosives with very high costs.
Applications:
Electric arc furnaces, for oxygen injection, slag and ladle cleaning, opening of casting mouth, waste cutting.
Manufacturing: Daiwa
Recommended for this product:
It works at a pressure of 100 to 120 PSI of oxygen.
Heat generation up to 4000°C for cutting all types of materials with a melting point lower than 4000°C.
It does not produce noise or vibrations.
Available in lengths of 2.75 m, 3 m and 4 m, with threads at each end, allowing the full length to be used without discarding offcuts.
Each lance has a built-in coupling, which can be of the threaded, pressed and/or quick coupling type.
Thermal Lance is used to open tapping or tapping nozzles in EBT and unclogging of divers or other refractory purge parts.
Target:Prevent clogging and facilitate the flow of liquid steel.
Diameters: 1/4″ – 5/8″ – 3/8″
Oxycutting of hard metals (stainless steels, Mn, CrMo, white iron, gray iron, etc.), opening of casting openings, slag passages, matte pots, maintenance of conical or gyratory crushers (removal of concave-blankets), mill jackets, pump feed boxes, shaft sweeping, EBT.
Blast Furnace maintenance, refractory parts unclogging.
Rapid ignition in average 5-10 seconds.
Ability to melt any ferrous and non-ferrous material (steel, concrete, concrete, granite, copper, slag, quartz, etc) complementing oxyfuel, pneumatic drills and explosives with very high costs.
Further information: SEE THE INFORMATION

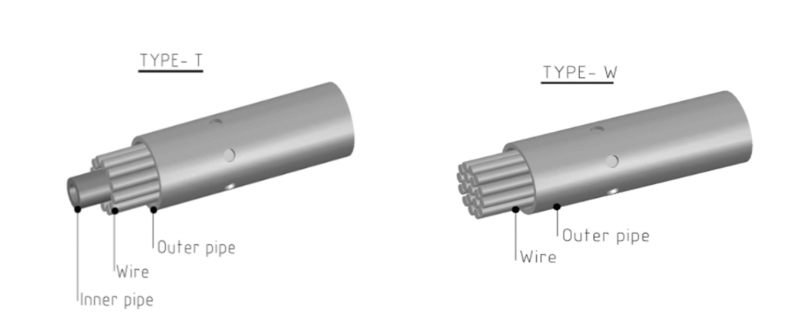

Type-T (double tube type)
It can produce a direct flame at high speed to splash materials to make holes or break them quickly.
W-Type (fully packaged wires)
It can produce a wider flame at a higher temperature than Type-T to dissolve solid materials that have high melting points.
Offline use
Smooth ends: Some customers prefer to use the smooth-ended thermal lance when one piece is sufficient to complete the job.
.png)
Use with thread and bushing
Thread and plug: Many customers use this way of connecting Thermal Lance to each other, without wasting Thermal Lance in half.
.png)
HOLDER 1/4″ – 1/2″ – 3/8″
3/4″ – 16.0MM
It works at a pressure of 100
to 120 PSI of oxygen.
LANCE HOLDER
AND PARTS
- Connecting fitting for oxygen injection
- Provides safety to the lancing operator
- Allows for proper steering of the lance
TEMPERATURE – 800 -900
DEGREES C
Ceramic coating.
Metal oxides and nitrides.
Lances
CERAMICS
- Threaded terminals
- Tº - 800-900 ºC
- It is not heat-treated.
- It is not heat-treated.
Between 200 and 600
microns
thickness
With 25% content
Aluminum
Lances
CALORIZED
- Extra resistance to tº.
- Special Low Carbon Steel Lances
- Surface coating with castable
Dimension:
3/4″ x 2,750mm
Extra strength for
direct injection into furnaces
Lances
CONCRETE
- Heated pipe lined with refractory concrete
- Extra strength for direct injection into furnaces
- Continuous operation at high temperatures
